| Brand Name : | Jinzen Drills |
| Model Number : | Integral Drill Steel |
| Certification : | CE |
| Price : | USD10-80 |
| Payment Terms : | L/C, , T/T, Western Union |
| Supply Ability : | 5000PCS Per Month |
| Delivery Time : | 5-8 work days |

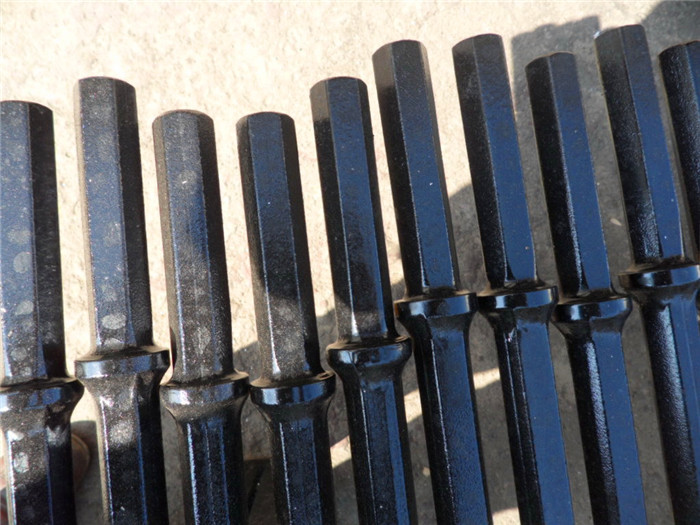

22mm Hexagonal Plug Hole Integral Drill Steel Or Rock Drill Rod For Quarry Mining Rock Drilling Tools
Integral Drill Steels: Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.
In order to adapter to different rock conditions,the drill rod is selected by users.Integral drill rod, another name called integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling shank H22*108 mm, H19*108 mm, and standard hex. Bit diameters include 20-42 mm,different lengths are available from 400 mm to 6000 mm usually.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 20 mm to 42 mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.
| Products Name | Integral drill rods,Integral drill steels,Integral rod,Plug hole rods, |
| Application | used mining,quarry,tunnel,construction etc for drilling |
| Steels | Made from steel as same grade as internationally well-known brand |
| Carbide alloy | High quality carbide alloy |
| Adantage | long service life,high wear resistance |
| Heat treatment | Through heat treatment-hardened shank end for high wear resistance and a longer service life |
| MOQ | No requirement for testing and trial order |
Feature
1. Through-hardened shank end for high wear resistance and a longer
service life
2. Stainless steel flusing tube lining to prevent corrosion and
breakage
3. Super tough 40SiMnCrNiMo steel, specially designed for wet or
dry drilling.
4. Special anti-corrosion oil to protect the flushing hole of the
rod.
5. High quality insert subjected to special bronze- brazing
process.
Specification
| Types of drill rods | Specifications | Length(mm) | Shank |
| Integral drill steels | Bit Diameter:26mm,28mm,30mm, 42mm | 400-4800mm | Hex22(7/8")*108(41/4")mm Hex19(3/4")*108(41/4")mm Hex25(1")*108(41/4")mm Hex25(1")*159(61/4")mm |
| Plug hole rods | Chisel bit Diameter: 17mm,20mm,22mm | 150-750mm |
Application
All our products, which passed ISO9001 quality management system, are widely used in open pit mining, tunneling, quarrying,transportation construction,engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc.We are one of the companies which have the most complete product lines, the most abundant species and the most widely usedproducts in drilling industry.
How to order?
Shank Style + rod Length + Head Diameter
Notes
The ordinary Shank length is 108mm,83mm and 159mm also available
The rod length must be specified in order
In order to adapter to different rock conditions,the drill rod is
selected by users.
|
|
